Name

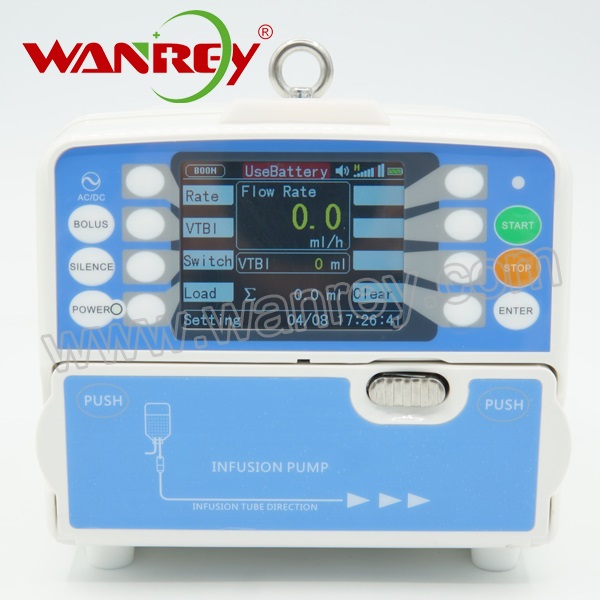

 Infusion Pump WR-MD030

Flow rate range

0.1~1200 ml/h
Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments

Infusion mode

rate mode, drip mode ( ml/h and drops/min can be switched)

Remaining time

00h:00m It depends on the setting of VTBI and flow rate

Volume to be infused (VTBI)

0 ~ 9999 ml

Volume Infused (∑)

0 ~36000 ml

Infusion accuracy

±5%

Applicable infusion set

Support a wide variety brands of infusion set including major manufacturers & selected local brands

KVO rate

1 ~ 5 ml/h

Bolus rate

300 ~ 1200 ml/h

Purge

600 ml/h

Air bubble detection

Ultrasound sensor detection with four levels of air in line alarm adjustable

Occlusion pressure

 3 adjustable occlusion pressure settings: low, middle and high

Alarms

Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.

Computer Interface

RS232 (optional)

Power supply

AC:100~240V,50/60Hz       DC:12V ±1V

Battery

Rechargeable lithium polymer battery,7.4V,2100mAh
Can operate for more than 3 hours after fully charged at 25ml/h.

Battery recharge time

10hs recharging when machine is turned on, 3hs recharging when machine is off.

Power consumption

25VA

Classification

Class I, type CF

Water Proof Level

 IP×3

Mode of operation

continuous

Dimensions

145×100×120 mm（length×width×height）

weight

≤1.4kg

Operating conditions

Temperature:5℃~40℃,relative humidity:10~95%,
air pressure:86～106kPa

Transport conditions

Temperature-20℃~+60℃,relative humidity:10~95%,
air pressure:50～106kPa

Storage conditions

Temperature-20℃~+45℃,relative humidity:10~95%,
air pressure:50～106kPa
