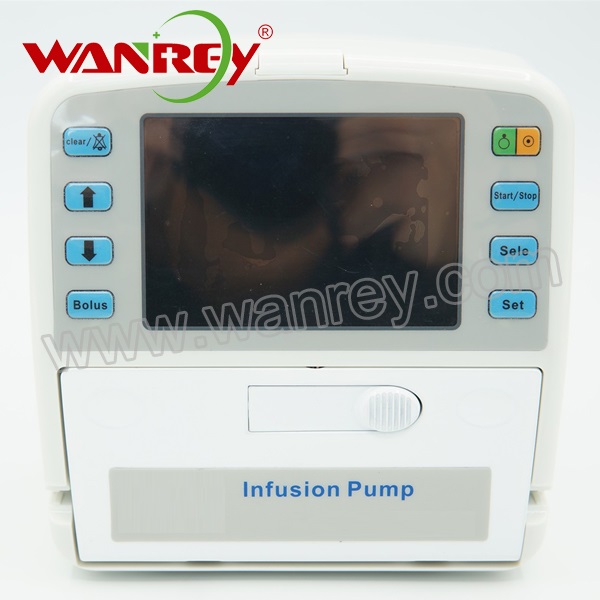

Infusion mode

Rate mode, Drip mode, Micro mode

Infusion set

Any brand of infusion set

Infusion accuracy

±5%

Infusion rate range

Normal mode:1~1200ml/h, increment 1 ml/h;

Trace mode:0.1-99.9ml/h, increment 0.1ml/h

KVO rate

1-8ml/h

Purge/Bolus rate

300-1200ml/h

Volume To Be Infused (VTBI)

1~9999 ml

Air Bubble detection

Ultrasound sensor detection of air bubble

Occlusion detection

Occlusion pressure detection adjustable on 3 levels

Alarm

Over, Low battery, Air, Occl., AC power failure, Door open, Time waited out, Error, Countdown

Displayed information

AC power connection, Power, Volume, Door open, Tube, Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Infusion rate, VTBI, Volume infused

Power supply

AC 110-240V 50-60HZ

Battery

Rechargeable lithium battery, 7.4 V, 2400mAh;

Can work continuously for 3.5 hours at the rate of 25ml/h

Dimensions

135x90x135 mm (L×W×H)

Weight

≤1.5Kg

Classification

Class II, BF type

Waterproof level

IPX3
