Laptop Ultrasound Scanner Laptop WR-MD019

WR-MD019 Ultrasound Scanner is a laptop scanner.It is new design and ultrathin.

Features:

12.1 inch LED shows the images with more flexible ways.
Supernormal battery life 4-8 hours
Super thin body designwith full-scale flexible keyboard
First-class digital imaging technology, more clearer image
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changedc
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability

Technical Specification:

Scanning mode: convex / linear

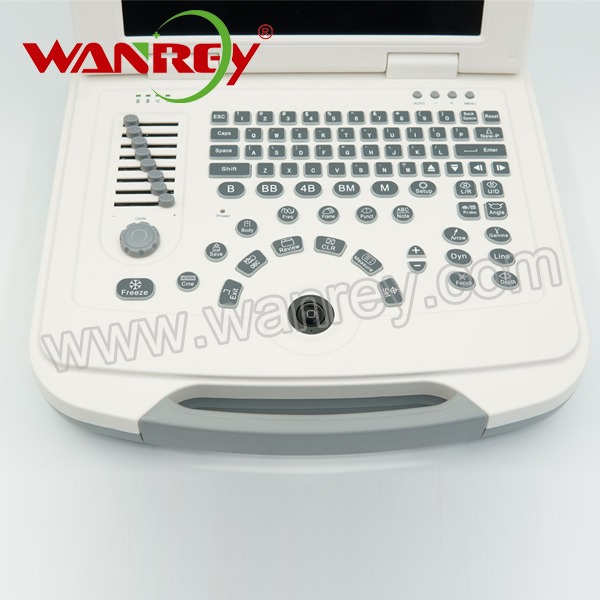

Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard& track ball operation
Monitor: 12.1 inch high resolution color LED display
Display mode: B, B+B, B+M, M, 4B
Total Gain: 0-99
Detecting depth: 0-240mm
Dynamic range: 0-120dB
Filtering: 1-7
Blind Zone: ≤3mm
Resolution: lateral≤2mm, axial≤1mm
Geometry precision: lateral≤5%, axial≤5%
Gray scale: 256
Focus: 4 focuses combination randomly
USB port: storable and readable
Image storage: 127
Local zoom can be used at real time.
Body marks: 65
Pseudo color: 16
Magnification: ×0.8, ×1.0, ×1.20, ×1.50, ×1.80, ×2.0 (6 kinds)
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
Image processing: up/ down, left / right, black / white conversion, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, HR, BPD, CRL, GS, FL, HC, AC, etc.
Note: date, time, name, sex, age, doctor, hospital, comment, language conversion.

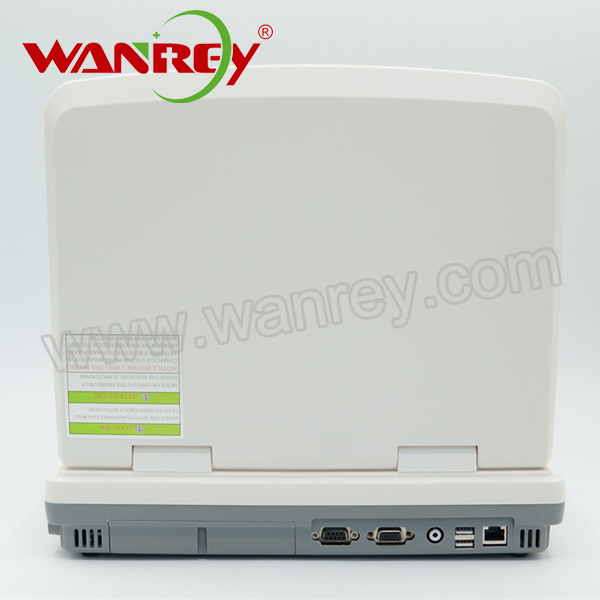

Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted,with gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V/110V±11V , 50/60Hz
