8" Color Patient Monitor WR-MD008

Category: Patient Monitor Publish Time: 2019-04-02 15:59

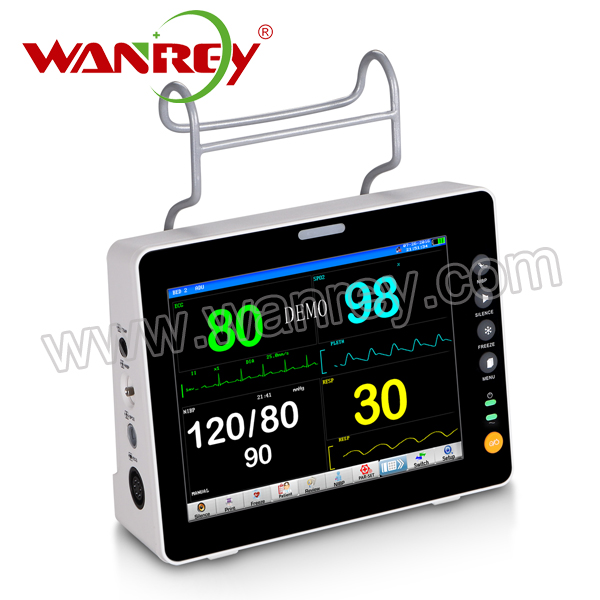

8" Color Patient Monitor WR-MD008

8" Color Patient Monitor WR-MD008

8" color TFT LCD screen, resolution 800*600

Waterproof design, resistance to dropping (1 meter)

Low power consumption, fanless structure which creates no noise

Support external 13-20V DC power, continuously working for 5.5 hours above on battery backup, full charge with 2.5 hours, suitable for Ambulance, Emergency Transport

Display mode: Big font, trends review, 7 leads ECG waveform on same screen, and etc

15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis

Anti-electrosurgical unit (300W), anti-defibrillation (360J), suitable for Operating Room, General Ward

Digital SpO2 technology, excellent anti- interference performance, low perfusion (0.1%)

ECG

Lead: Standard 3/5 lead

Lead Mode: 5 Leads (RA, LA, LL, RL,V)

Lead Selection: I, II, III, avR, avL, avF, V

Lead Mode: 3 Leads (RA, LA, LL)

Lead Selection: I, II, III,

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV

HR and Alarm Range:

Adult: 15 ~ 300 bpm

Ped/Neo: 15 ~ 350 bpm

Accuracy: ±1% or±1bpm, which is greater

Resolution: 1 bpm

Sensitivity: > 200 (uVp-p)

Differential Input Impedance: > 5 MΩ

Bandwidth:

Surgery 1 ~ 20 Hz

Monitor 0.5 ~ 40 Hz

Diagnostic 0.05 ~ 130 Hz

CMRR:

Monitor > 100 dB

Operation > 100 dB

Diagnosis > 90 dB

Electrode Offset Potential: ±300mV

Range: ±2 mV ~ ±700 mV

Width: 0.1 ms ~ 2 ms

Rise time: 10 us ~ 100 us

ST Segment Monitoring Range:

Measurement Range: -2.0 ~ +2.0 mV

Measurement Accuracy: -0.8 ~ +0.8 mV

Measurement Error: ±0.02 mV or ±10%

RESP

Method: Impedance Between RA-LL or RA-LA

Measuring Impedance Range: 0.3~3 Ω

Base line Impedance Range: 200~4 KΩ

Bandwidth: 0.1~2.5Hz

Resp. Rate:

Measuring and Alarm Range:

Adult: 2 ~ 120 BrPM

Neo/Ped: 2 ~ 150 BrPM

Resolution: 1 BrPM

Accuracy: ±2 BrPM

Apnea Alarm: 10 ~ 40 S

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in Auto Mode:

1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)

Measuring Period in STAT Mode: 5 Min

Pulse Rate Range: 40 ~ 240 bpm

Measuring and Alarm Range:

Adult Mode

SYS 40 ~ 270 mmHg

DIA 10 ~ 215 mmHg

MEAN 20 ~ 235 mmHg

Pediatric Mode

SYS 40 ~ 200 mmHg

DIA 10 ~ 150 mmHg

MEAN 20 ~ 165 mmHg

Neonatal Mode

SYS 40 ~ 135 mmHg

DIA 10 ~ 100 mmHg

MEAN 20 ~ 110 mmHg

Static Pressure Range: 0 ~ 300 mmHg

Static Pressure Accuracy: ±3mmHg

Accuracy: Maximum Average Error ±5mmHg

Maximum Standard Deviation ±8mmHg

Overpressure Protection:

Adult Mode: 300 mmHg

Pediatric Mode: 240 mmHg

Neonatal Mode: 150 mmHg

SpO2

Measuring Range: 0 ~ 100 %

Resolution: 1 %

Accuracy: 70% ~ 100% ±2 %

0% ~ 69% unspecified

Pulse Rate:

Measuring Range: 20~300 bpm

Resolution: 1bpm

Accuracy: ±3bpm

TEMP

Applicable Temperature Sensor: YSI, CYF

Channel: 1

Measuring Range: 0 ~ 50 ℃

Resolution: ±0.1 ℃

Accuracy: ±0.1 ℃ (Do not including sensor error)

Dimension: 210*80*175mm (L*W*H)

Weight: 1.35kg

Standard: 3/5-Lead ECG, RESP, SpO2, NIBP, PR, 1-TEMP

Optional: Mainstream/Sidestream EtCO2, Touch screen

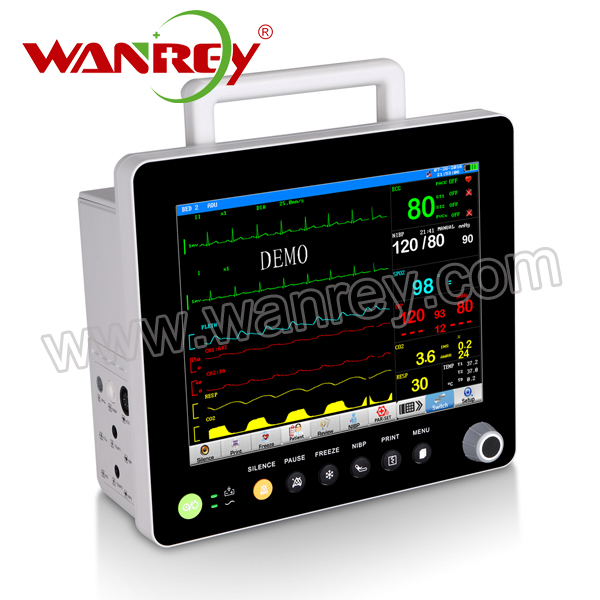

Prev：15" Patient Monitor WR-MD007
