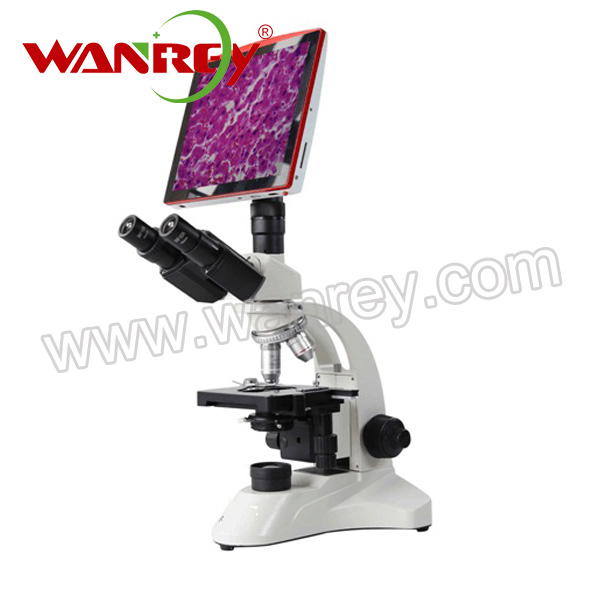

Digital Microscope With LCD Screen WR-LD050

Microscope parameters

1, the whole machine: integrated frame structure, according to ergonomic design.

2, the total magnification: 40X-1600X.

3, the observation system: hinged three-eye TV tube, 30 ° tilt, 360 ° rotation, tube distance 55mm-75mm; can be equipped with micro-definition device connected to the computer.

4. Eyepiece: Wide-angle WF10X; Wide-angle WF16X.

5. Objective: 195 achromatic 4X, 10X, 40X (S), 100X (OS).

6. Carriage platform: double-layer mechanical mobile platform with an area of ​​125mmX115mm and a moving range of 70mmX30mm.

7, converter: four-hole converter, ball positioning.

8, condenser mirror: Abbe N. A = 1.25, with variable iris.

9. Focusing mechanism: coarse and fine coaxial movement, stroke: 22mm, fine movement accuracy: 0.002 mm.

10, light source: LED cold light source, coaxial light source, side light source, 3W, brightness adjustable, wide voltage AC100V-250V.

11. Attachment: CCD interface, blue filter, power cord, cedar, plastic dust cover.

12, package: foam, cardboard boxes.

Digital LCD screen parameters

7-inch digital LCD screen, simultaneous display binocular field of view, resolution 800*600, 2 million pixels, AV, USB output
