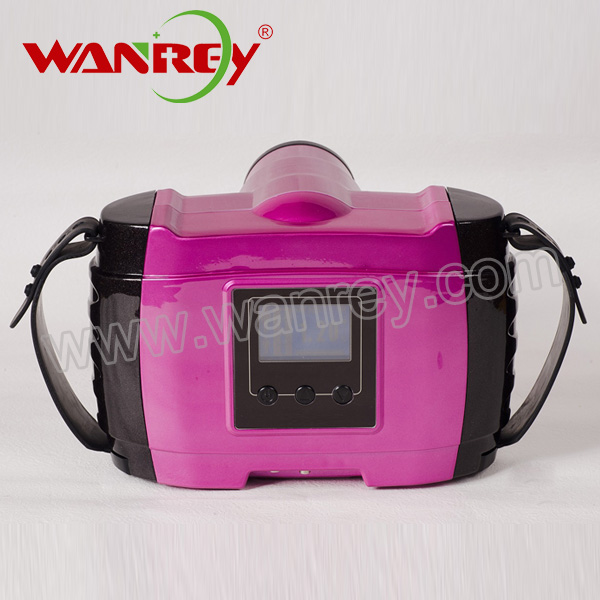

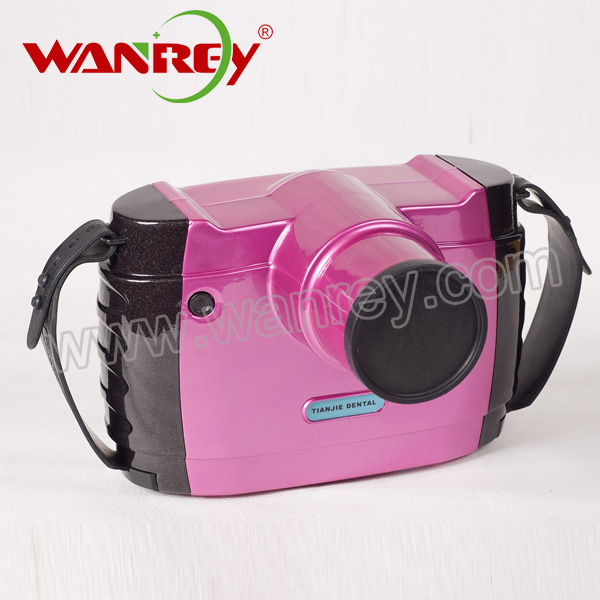

Portable Dental X-Ray Machine WR-DD010

Wanrey Service
1.Wanrey Code: WR-DD010
2.Lead Time: 2-10 days,based on stock.
3.MOQ:1 unit
4.OEM/ODM: Welcome
5.Printing Label: Available
6.Payment: TT,Western Union,Moneygram,PayPal
7.Transportation: By sea,By air,By courier

Instructions

This product is the equipment combined with the high frequency switch DC 70KV tube voltage and 1mA tube current X-ray, which can be taken a photograph in the arm or solid and can be used with digitized sensor and film x-ray system.

Product Feature

1. The product is adopted by the micro-processor for processing the high-frequency switching start from little Ripple amount DC high voltage to draw stable x-ray output, thereby obtain high-resolution images.

2. The machine takes advantage of stable high-efficiency DC high voltage and takes a photograph with small amount of X-ray, which reduces the X-ray irradiation dose for the patient and user.

3. Multilayer X-ray shielding, give full consideration to the safety of users.

Product Parameters

a) The rated parameters of x-ray production device

Tube voltage: 70kv (fixed)

Tube current: 1MA (fixed)

High voltage generating circuit: High frequency switch

X-ray control method: Microprocessor control

Time setting range: 0.05-1.2 seconds

a)     Weight: 1.95kg

b)    Size: 215*140*160 mm

c)     X-ray tubing

Type: bipolar fixed x-ray tube

X-ray tube Model: DG-073B-DC

The size of x-ray tube focal spot: 0.3*0.3mm

ANODE heating unit: 8.5Khu

Maximum tube voltage: 75Kv

Target angle: 21°

Total filtration: 1.6mmAL (Origin filtration: 0.8mmAL, Additional filtration: 1mmAL)

X-ray irradiation range: 73mm (roundness)

e) Useage voltage: battery DC16.8V

f) Charger: Input AC100-240V, Output: DC16.8V

Packin List:

1.    Main Unit

2.    Ball Head

3.    2 cables

4.    Blue tube

5.    Other accessories for test.(Kodak Films,etc.)
