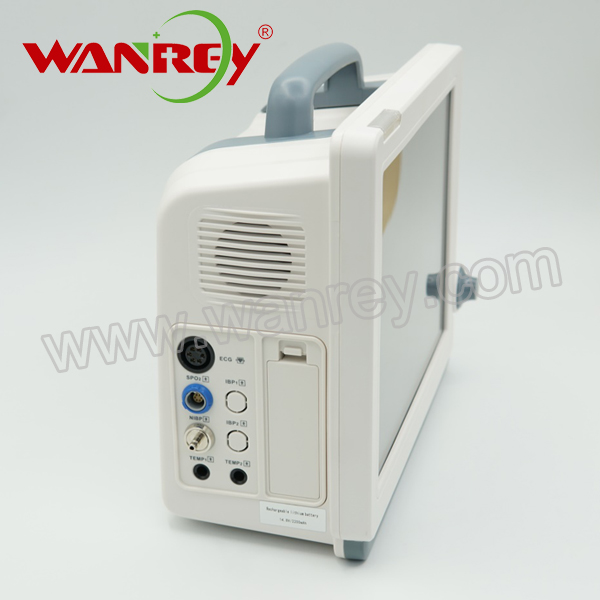

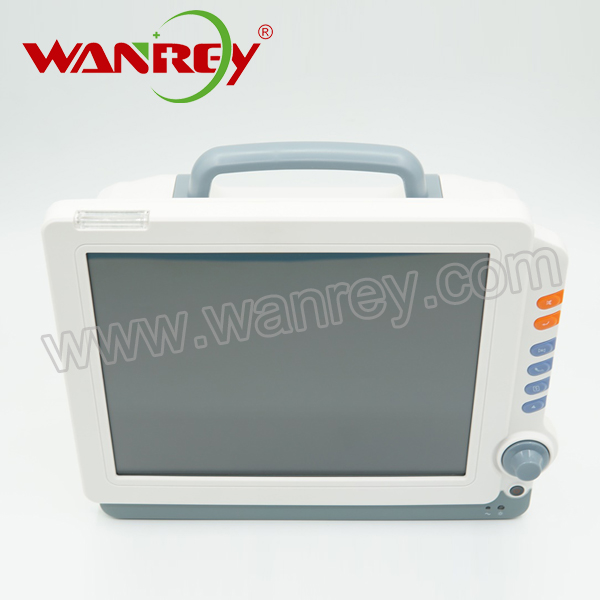

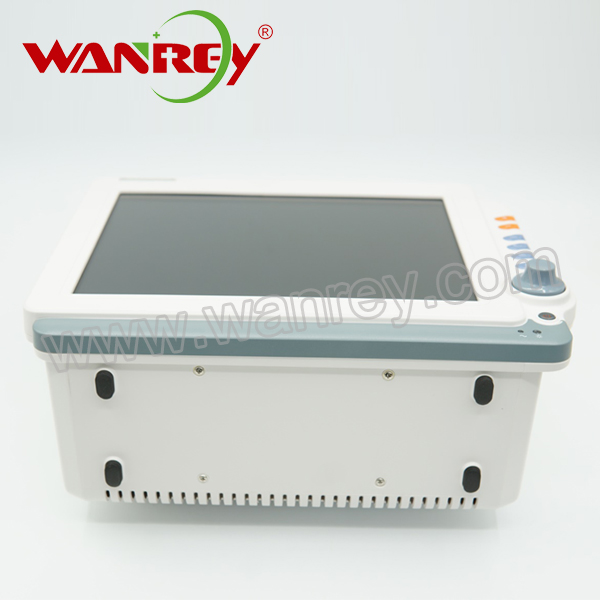

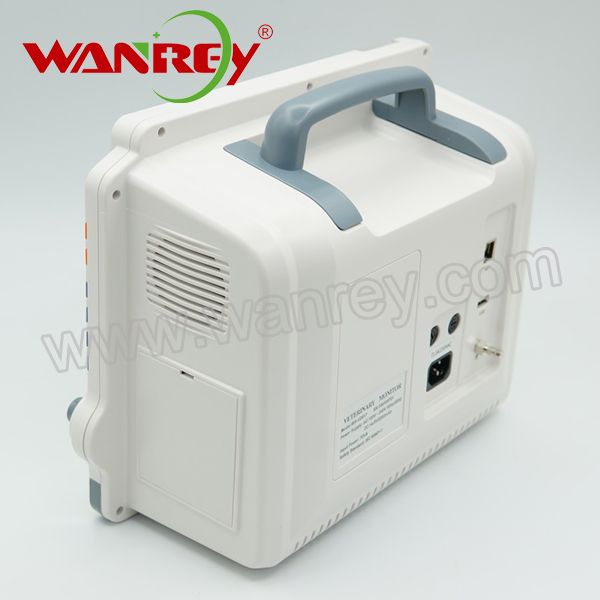

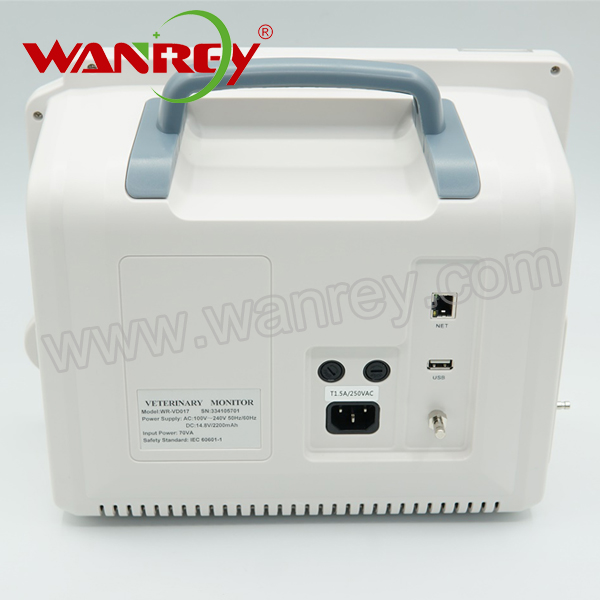

Vet Patient Monitor 12.1" WR-VD017

Features

12.1" color TFT LCD screen, resolution: 800*600
5 kinds of interfaces: Standard/Big font/6-lead ECG/Trend gragh/OxyCRG
Maximum 8-channel waveforms display, the waveform color can be dened by user (7 colors)
96-hour storage and review of trend graphic gram and table, 400 groups NIBP data,1800 alarm events

ST and arrhythmia analysis, pacemaker analysis, drug dose calculation
Anti‐debrillation design
NIBP over pressure protection
Plug‐in rechargeable battery, AC/DC available
Support wire or wireless network

Technical Specifications

ECG
Lead Mode                          5 Leads (R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection                     I, II, III, avR, avL, avF, V
Wavef orm                          2 ch
Lead mode                          3 Leads ( R, L, F or RA, LA, LL)
Lead selection                     I, II, III,
Wave form                          1 ch
Gain                                    2.5mm/mV, 5.0mm/mV, 10mm/mV,20mm/mV, auto
HR and Alarm Range         Adult    15 ~ 300 bpm
                                            Neo/Ped    15 ~ 350 bpm
Accuracy                           ±1% or±1bpm, which is greater
Resolution                         1 bpm
Sensitivity                        > 200 (uVp-p)
Differential Input Impedance       > 5 MΩ

CMRR                        Monitor > 105 dB
                                   Operation > 105 dB
                                   Diagnosis > 85 dB
Electrode offset potential         ±300mV
Leakage Current                    < 10 uA
Baseline Recovery                  < 3 S After Defi.
ECG Signal Range                   ±8 m V ( Vp-p )

Bandwidth                           Surgery    1 ~ 20 Hz
                                           Monitor     0.5 ~ 40 Hz
                                           Diagnostic  0.05 ~ 130 Hz
Calibration Signal               1 (mVp-p),  Accuracy:5%
ST Segment Monitoring Range         Measure and Alarm -2.0 ~ +2.0 mV

ARR Detecting Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,BRADY, MISSED BEATS,PNP, PNC,Alarm Available,Review Available
Respiration
Method                            Impedance between R-F(RA-LL)
Differential Input Impedance       > 2.5 MΩ
Measuring Impedance Range          0.3~3 Ω
Base line Impedance Range           200~4 KΩ
Bandwidth                  0.1~2.5Hz
Resp. Rate                 Measuring and Alarm Range
                                   Adult 0 ~ 120 Brpm
                                   Neo/Ped 0 ~ 150 Brpm
                                   Resolution 1 Brpm
                                   Accuracy ±2 Brpm

Apnea Alarm              10 ~ 40 S
NIBP
Method                       Oscillometric
Mode                          Manual, Auto, STAT
Measuring Interval in AUTO Mode   1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)
Measuring Period in STAT Mode     5 Min
Pulse Rate Range           40 ~ 240 bpm
Alarm Type                  SYS, DIA, MEAN
Measuring and alarm range        Adult Mode
                                    SYS 40 ~ 270 mmHg
                                    DIA 10 ~ 215 mmHg
                                    MEAN 20 ~ 235 mmHg
                                    Pediatric Mode
                                    SYS 40 ~ 200 mmHg
                                    DIA 10 ~ 150 mmHg
                                    MEAN 20 ~ 165 mmHg
                                    Neonatal Mode
                                    SYS 40 ~ 135 mmHg
                                    DIA 10 ~ 100 mmHg
                                    MEAN 20 ~ 110 mmHg
Resolution                      1mmHg
Accuracy                        Maximum Mean error ±5mmHg
                                       Maximum Standard deviation ±8mmHg
Overpressure Protection          Adult Mode 297±3 mmHg
                                                 Pediatric Mode 240±3 mmHg
                                                 Neonatal Mode 147±3 mmHg
SpO2
Measuring Range             0 ~ 100 %
Alarm Range                    0 ~ 100 %
Resolution                       1 %
Accuracy                         70% ~ 100%  2 %
                                        0%  ~  69% unspecified
Actualization intervalabout      1 Sec.
Alarm Delay                           10 Sec.
Pulse Rate                Measuring and Alarm Range 20~300 bpm
                                 Resolution       1bpm
                                 Accuracy ±3bpm
TEMP
Channel                          2
Measuring and Alarm Range 0 ~ 50 ℃
Resolution               0.1 ℃
Accuracy                 ±0.2 ℃
Actualization intervalabout     1 Sec.
Average Time Constant           < 10 Sec.
IBP
Label                           ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range       ART 0 ~ 300 mmHg
                                PA -6 ~ 120 mmHg
                                CVP/RAP/LAP/ICP-10 ~ 40 mmHg
                                P1 / P2-10 ~ 300 mmHg
Press Sensor                  Sensitivity 5  uV/V/mmHg
                                        Impedance 300-3000Ω
Resolution                      1 mmHg
Accuracy                        ±2% or 1mmHg which is greater
Actualization interval      about 1 secretary
Standard:  ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature

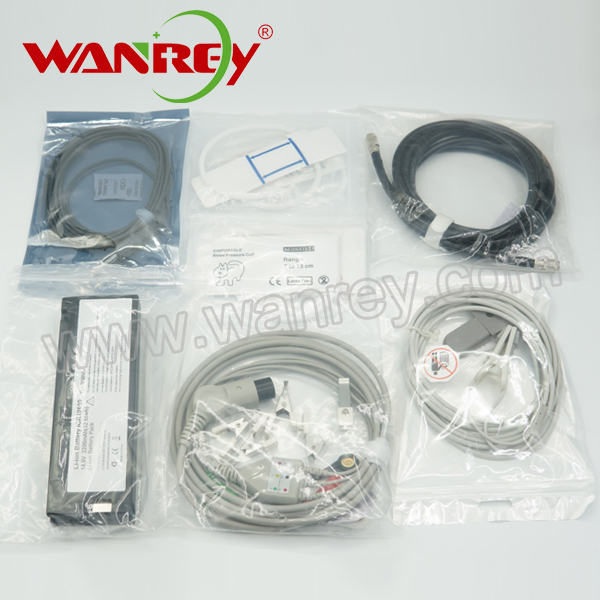

Optional:  Nellcor SpO2, EtCO 2, IBP, Thermal Recorder
