Veterinary Anesthesia Ventilator WR-VD034

Category: Vet Ventilator Publish Time: 2018-04-19 23:18

Veterinary Anesthesia Ventilator WR-VD034 Wanrey Service 1.Wanrey Code: WR-VD034 2.Lead Time: 2-10 days,based o

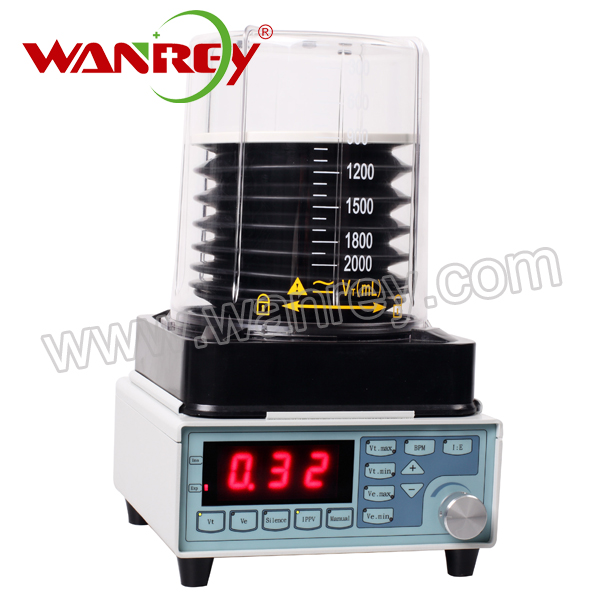

Veterinary Anesthesia Ventilator WR-VD034

Wanrey Service
1.Wanrey Code: WR-VD034
2.Lead Time: 2-10 days,based on stock.
3.MOQ:1 unit
4.OEM/ODM: Welcome
5.Printing on Panel: Available
6.Payment: TT,Western Union,Moneygram,PayPal
7.Transportation: By sea,By air,By courier

The Ventilator is newly developed portable unit, suitable for respiratory management of full anesthestic condition. Light, small, movable, for patient of more than 10 kgs. It can work together with anesthesitic ventilation system and perform tightly closed, semi-tightly closed and semi-open respiratory management.
Specifications:
Driven mode:Pneumatically driven electronically controlled
Display:High light LED display
Ventilation Volume:50 ~ 1600ml
Breath frequency:1 ~ 90BPM
I:E ratio: 4:1 ~ 1:6
Monitor parameter:
Tidal volume
Breath frequency
MV
Airway pressure
Alarm:
MV high alarm
MV low alarm
TV high alarm
TV low alarm
Gas supply:O2 or Air
Gas Supply pressure:O2(Air): 0.25~0.65Mpa
Physical specification
Packing size:33 x 27 x 41 cm
Gross weight: 8.0kgs
Environments
Environment Temperature: -9~+35°C
Relative humidity limits: 20%~60%
Atmosphere pressure: 700~1060hPa
