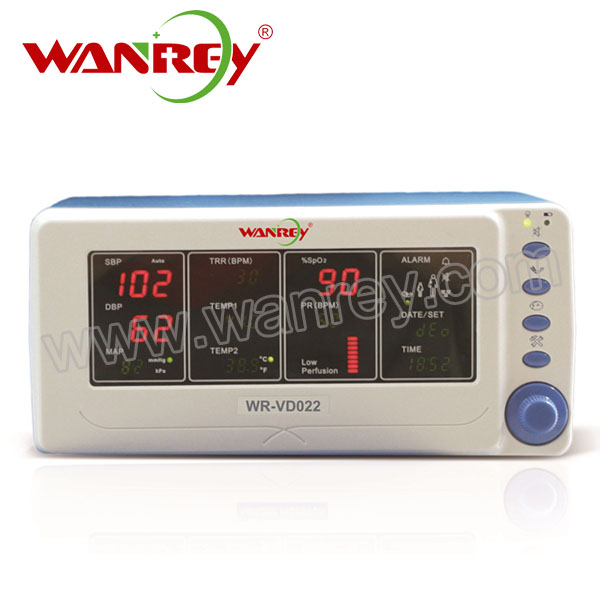

Vet Pulse Oximeter WR-VD022

WR-VD022 is a special multifunctional veterinary Vital Signs Monitor with 5 parameters.Professional veterinary analog software and accessories make WR-VD022 excellent for vet use.

Features:
1.Unique and nasal tube respiration measurement. Accurate respiration rate and wave only can be achieved by nasal tube respiration when patient can not repose completely.
2.Streamline outward appearance design, High-lightness LED digital tube display
3.Easy operation with rotated mouse
4.Low power design, rechargeable high-energy built-in battery.
5.Fast and accurate measurement of blood pressure, a function of venous-puncture
6.Using advance Analog technology, accurately measure the Spo2 in low perfusion situation.
7.Audible & visual alarm available and alarm limits are adjustable.
8.Suitable for adults, pediatrics, neonates.
9.Application in hospital like emergency pre-and post-operative care, theater\operating room, intermediate care\step down units, labor and delivery, hospital-based special procedure areas and outdoor ambulance surgery.
10.Communication functions to network with central monitoring system.Long-distance monitoring and software upgrade.

Specifications:
NIBP
Test principle Automatic oscillometric
Patients types Adult、pediatric、and neonate
Measurement parameters, systolic mean, diastolic
Measurement type Manual、automatic、and continuous
Measurement rang 15-300mmHg
Units of measurement mmHg/kPa optional
Accuracy ±2 mmHg
Respiration
Measurement range:0 BPM- 120 BPM
Accuracy :±1 BPM or ±5 %
Body temperature
Measurement range 20.0~45.0℃
Display T1、T2
Units of measurement: ℃/℉ optional
Accuracy ±0.1℃
Spo2
Measurement range 0-100% Resolution 1%
Pulse rate range 30-250 BPM
Accuracy ±2%
Standard parameter: Respiration+ Temperature+NIBP+Spo2(Built in rechargeable battery)

Environmental Specifications:
Operation
Temperature:5 to 45℃
Relative humidity: ≤ 80 %
Air pressure:70 to 106 kPa
Transport and Storage:
Temperature:-20 to 55℃
Relative humidity ≤ 93%
Air Pressure:50 to 106 kPa
Input voltage:100 to 240 V
Frequency:50/60 Hz
Power:80VA
Operation time:≥ 8 hours
Internal battery:≥ 1 hour
Connectors of signs
CRT: Standard VGA connectors
NET: RJ45 connectors
