Product name

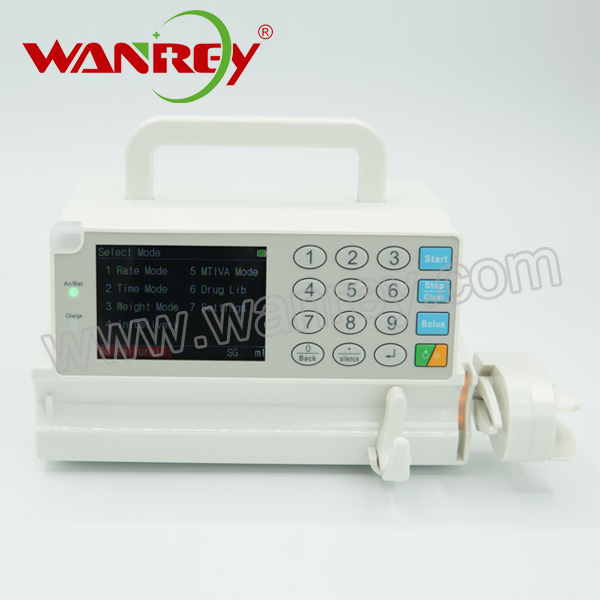

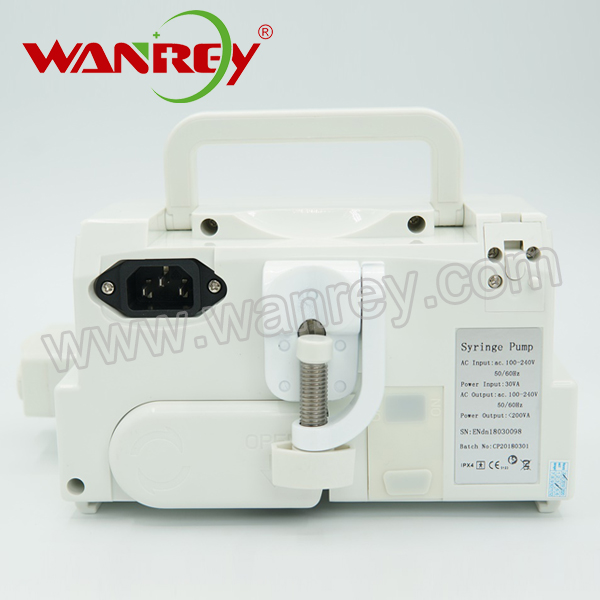

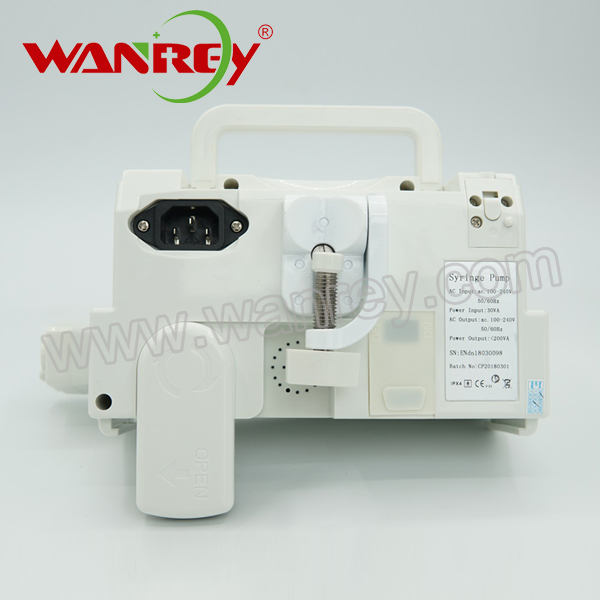

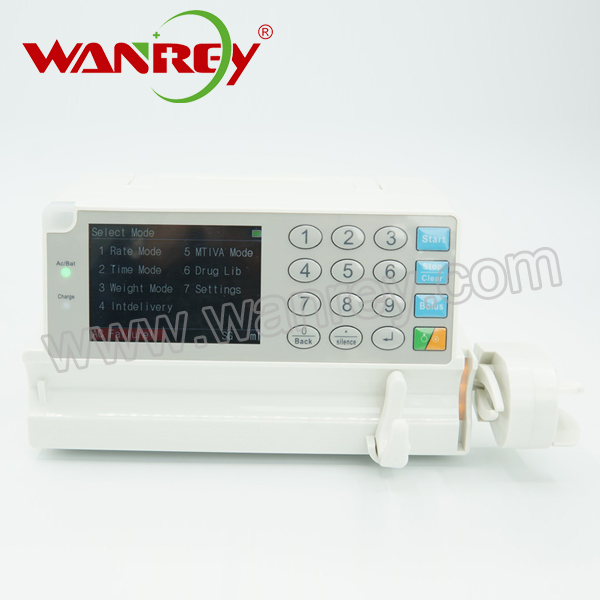

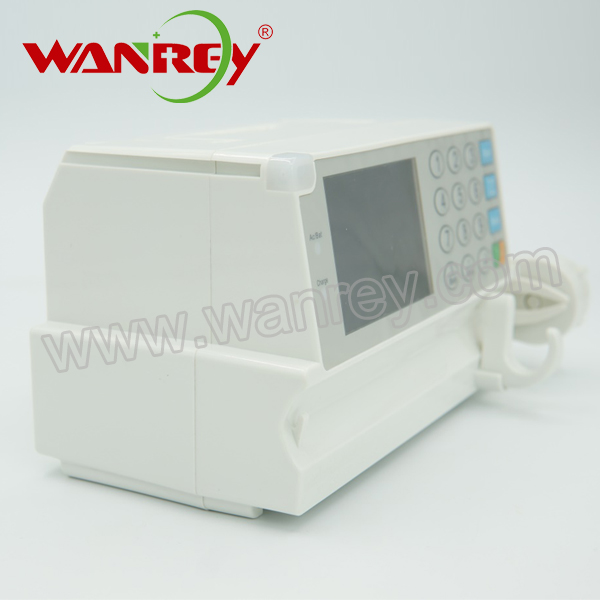

WR-VD004 Vet Syringe Pump

Infusion rate

 5 ml syringe : 0.1-150ml/h

 10ml syringe : 0.1-300ml/h

 20ml syringe :1.0-600ml/h

 30ml syringe : 0.1-900ml/h

 50ml syringe :0.1-1500ml/h

Syringe accuracy

 ±2%(After syringe correct calibration)

Applicable syringes

 Various brands of sterile syringes(Meet GB15810-2001  standard):5ml,10ml,20ml,30ml,50ml/60ml

Volume to be infused

 0-1000(ml)

Volume infused

 0-9999.9(ml)

KVO rate

 0.1-2ml/h adjustable; default value 0.1ml/h

BOLUS(ML/H)

 5 ml syringe : 100-150ml/h

 10ml syringe : 100-300ml/h

 20ml syringe : 100-600ml/h

 30ml syringe : 100-900ml/h

 50ml syringe : 100-1500ml/h

Infusion mode

 rate mode

 time mode

 Body Weight mode

History record

 1600 records

Computer interface

 RS232 interface

Alarm

 Syringe disengaged, Near compoletion, Infusion completion, Empty, Occlusion,  Low Battery, handle off etc

Power supply

 DC:12±1.2V

 AC :100~240V, 50/60HZ

Nurse call interface

Battery

 Rechargeable Li Polymer battery, 7.4V 1900mAh

Battery charging time

 10 hours with power on, 3 hours with power off

Battery operating time

 >6 hours at 5ml/h

Power consumption

 25 VA

Classification

 Class l, type CF

Dimension

 300x125x130mm

Net Weight

 1.8kg

Waterproof level

 IPx3

Occlusion pressure

 (40.0-60.0)kpa 3 adjustable occlusion pressure : low middle, high

Operating conditions

 Temperature :5°C-40 °C, relative humidity :10-95%

 Atmosphere pressure:86-106kPa

Transport conditions

 Temperature :-20°C-60 °C, relative humidity :10-95%

 Atmosphere pressure:50-106kPa

Storage conditions

 Temperature :5- 20 °C-45 °C, relative humidity :10-95%

 Atmosphere pressure:506-106kPa
